1966 Fender Super Reverb:

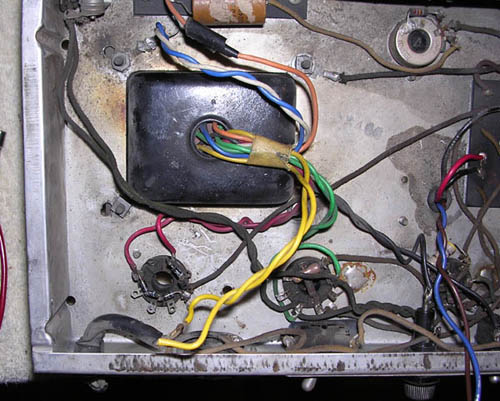

Power Transformer Before:

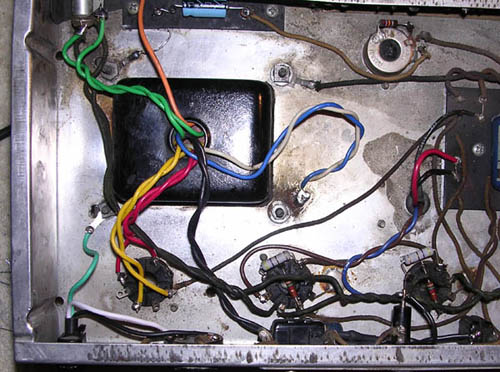

Power Transformer After:
Amp had a rewound Power Transformer that was just slapped in there. I rewired it per Fender spec. I removed the sloppy diode Solid State conversion across the Rectifier socket leads and wired it to accept the original GZ-34 rectifier tube. Also in the power section I replaced the out of spec and incorrect Grid and Screen Resistors. A 3-prong plug was added for safety. Some chassis cleaning was also done per customer request, but the original inked chassis stamp was retained. This project was completed in 2005.

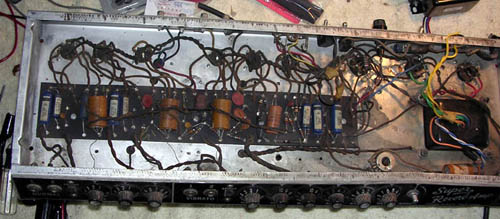

Chassis Before:

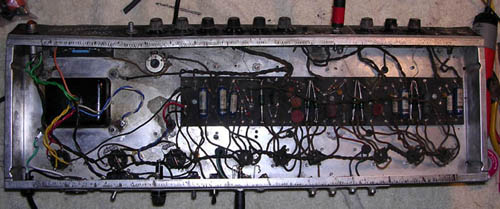

Chassis After:
Chassis was serviced with a complete electrolytic cap job and minor circuit repairs were made.
