Reissue Marshall JTM-45 Turret board upgrade:

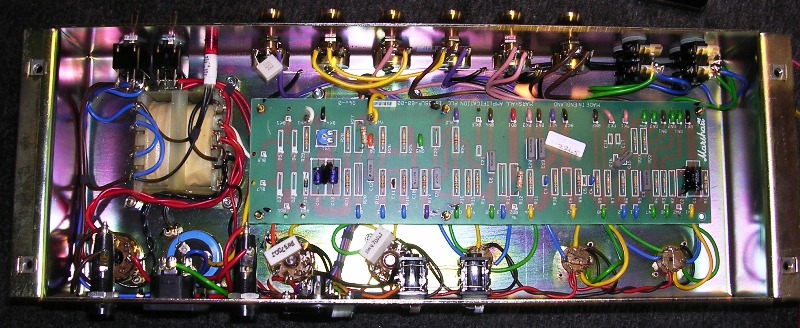

Original board:



This project was brought into me in 2010. Customer wanted to "upgrade" his stock reissue JTM-45 curcuit board with a Metro-Amp prewired one.

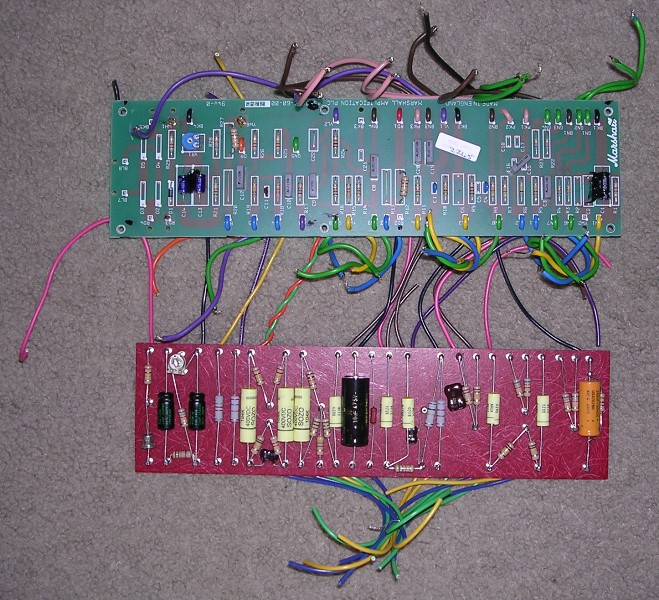

With original Marshall PC Board removed. You can compare both boards here. It was time consuming to remove this board. Had to be careful to label and take pictures making sure I didn't miss anything.

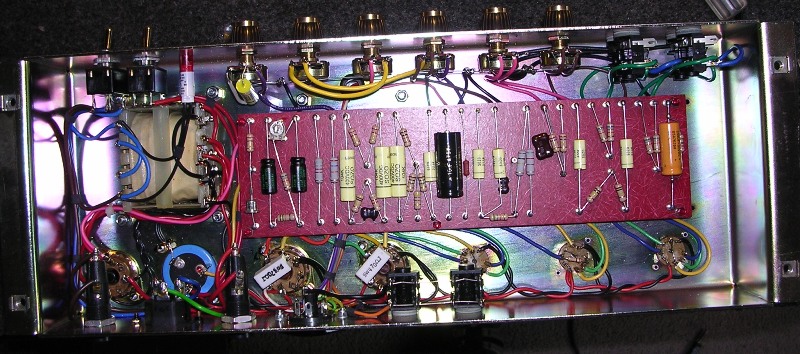

New board loosely in place. I had to also measure and redrill some mounting posts if I remember correctly.


Completed project:

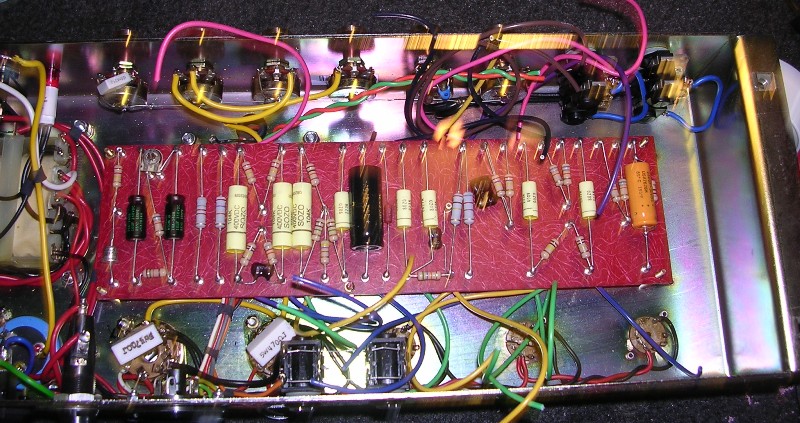

Installed tested and done. Note the Marshall style "QC" paint on the board mounting nuts. I also changed the presence cap for a Sozo part.
